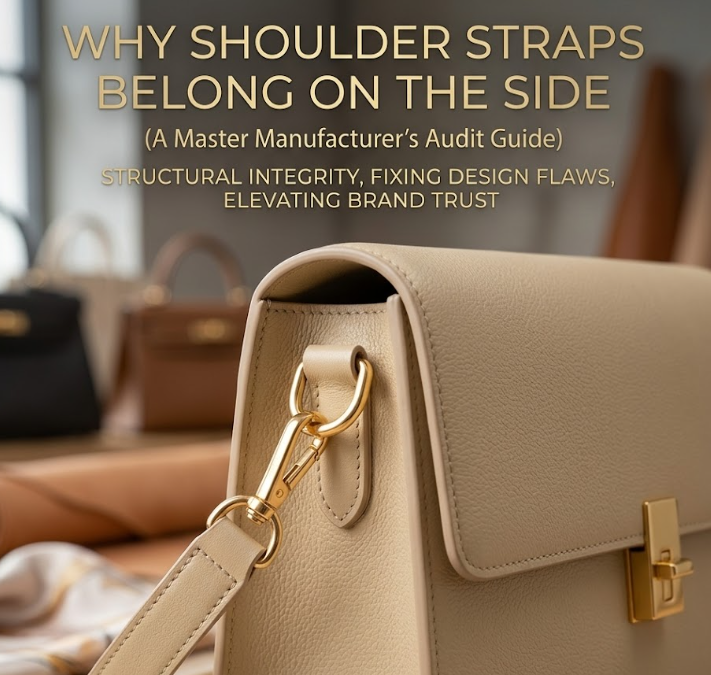

Can You Attach a Shoulder Strap Directly to a Handbag Flap?
At first glance, the idea looks modern, clean, and unique. Several AI-generated handbag concepts and digital renderings even utilize this layout to achieve a completely uninterrupted profile along the side panels. Unfortunately, from a technical engineering perspective, executing this layout creates severe structural, functional, and durability issues during commercial wear.
Recently, an emerging fashion brand asked our team to develop exactly this type of contemporary crossbody bag based on a concept sketch. Before sampling began, we performed a thorough Design for Manufacturing (DFM) review and discovered three hidden structural flaws that would likely result in consumer complaints and high return rates if mass-produced. Below is an engineering analysis of why this design concept fails under real-world stress—and how to fix it.
Why This Design Looks Good But Fails: 3 Critical Structural Risks
Structural Risk #1: Visible Reinforcement Lines Damage Luxury Appearance
When you attach a heavy-duty shoulder strap to a premium bag, that physical connection point handles continuous tensile stress. In any standard women bags factory, stabilizing this point requires robust internal reinforcement material (such as heavy-duty Texon or salpa) paired with a structural box-stitch or X-stitch matrix.
If a factory drives a needle through the rear layer of the flap to anchor a strap, the stitching rows will pierce directly through to the front exterior face of the flap. Having highly visible, industrial-looking reinforcement stitch rows cutting directly across a clean leather surface breaks the aesthetic harmony. High-end handbag manufacturing relies on hiding structural stress lines within internal seams, rather than exposing them on the most prominent visual zone of the product.
Structural Risk #2: Load Distribution Failure & Edge Paint Destruction
The anchor point where the shoulder strap meets the handbag functions as the primary load-bearing center. When a customer populates the main compartment with a phone, cosmetics case, and keys, gravity exerts a downward force on the bag body, while the strap transfers an upward pulling force to the shoulder.
The Flap Warps: Because the flap consists of pliable leather or PU designed to flex, placing the load path here causes the top hood to warp under load, resulting in severe surface wrinkling and a collapsed silhouette.
Edge Paint (油边) Cracking: As the user walks, the dynamic movement of the strap creates constant frictional rubbing against the finished edges of the flap. Within weeks of regular use, premium edge paint will crack, flake, and fray under this continuous mechanical abrasion.
Structural Risk #3: Poor User Experience During Daily Use
Beyond material breakdown, forcing a flap to carry structural weight introduces an erratic center of gravity, which compromises basic functionality:
Unclasping Strain: When the bag is worn crossbody, the upward tension from the strap keeps the flap pulled tight against the wearer's body. Attempting to open a front turn-lock or magnetic hardware clasp turns into an awkward, two-handed struggle against the strap's own tension.
The Spill Hazard (Flip-Over Effect): The moment the front lock is disengaged, the heavy, unanchored main bag body drops down. Lacking a balanced side-mount anchor, the bag's center of gravity shifts instantly, causing the body to tilt forward and flip completely upside down, spilling the contents on the floor.
Engineering Comparison Matrix
To evaluate how structural placement affects product longevity and customer satisfaction, compare the technical performance profiles of both configurations:
| Engineering Metric | Strap Mounted on Flap (Gimmick) | Strap Mounted on Bag Body (Standard) |
|---|---|---|
| Load Path Distribution | Fails; concentrated on pliable closure leather | Succeeds; distributed along structural side seams |
| Flap Shape Retention | High risk of surface wrinkling and distortion | Remains perfectly flat and visually consistent |
| Edge Paint Longevity | Accelerated cracking via friction abrasion | Zero friction contact; extended lifecycle |
| Opening Experience | Awkward two-handed pulling alignment | Smooth, natural single-handed operation |
| Compartment Balance | High risk of flipping forward when unclasped | Stays upright and stable under full load |
| Luxury Appeal Preservation | Ruined by visible structural stitching grids | Stress reinforcement hidden inside lining layers |
Factory Case Study: Engineering a Premium Solution
A European design house sent our development team a technical drawing featuring an unanchored under-flap strap configuration[cite: 1]. They were determined to keep the front and side panels completely seamless to protect their minimalist visual identity[cite: 1].
Instead of copying the flaw into a fragile prototype, we conducted a structural intervention[cite: 1]. We engineered custom side-mounted leather tabs (耳仔) fitted with low-profile D-rings positioned just below the flap hinge line[cite: 1]. This allowed the strap to attach naturally to the body, keeping the load path aligned with the reinforced side panels[cite: 1]. The top flap remained smooth and clean, the edge paint was completely protected from friction, and the bag achieved perfect balance[cite: 1].
Run your tech packs and pre-production samples through these five quality benchmarks before approving a style for mass assembly:
Frequently Asked Questions
Can a long shoulder strap ever be safely attached directly to a handbag flap?
No. For commercial-grade products, attaching a load-bearing strap to a flexible, unanchored flap is an engineering error[cite: 1]. It leads to material deformation, finish failure, and a poor user experience[cite: 1]. Long straps should always anchor to the reinforced framework of the bag body[cite: 1].
Why do handbag straps typically attach to the sides or base of the bag body?
Mounting straps to the sides distributes weight along the main structural seams[cite: 1]. This protects the bag's silhouette, ensures the opening mechanism operates smoothly, and balances the center of gravity so items do not spill when unclasped[cite: 1].
Will attaching a strap to the flap cause long-term damage to the leather?
Yes. The constant upward pulling force stretches the grain pattern of leather or PU, causing permanent wrinkling[cite: 1]. Additionally, the hardware connectors rub against the edge coatings, causing the paint to crack and peel within weeks[cite: 1].
How do luxury brands achieve a seamless side profile without sacrificing stability?
Luxury manufacturers use internal structural channels[cite: 1]. They anchor internal metal bars or reinforced backing loops behind the rear panel or along hidden top seams[cite: 1]. This keeps the side panels clean while anchoring the weight to a rigid structural frame[cite: 1].
The Bottom Line
While experimental design shapes fashion, structural integrity determines a brand's long-term reputation. A unique design concept that breaks or creates a frustrating user experience leads to negative reviews and high return rates on Shopify or Amazon[cite: 1]. Partnering with a manufacturer that conducts rigorous DFM reviews ensures your collections are both visually compelling and built to last[cite: 1].
Developing a New Bag Collection? Submit Your Tech Pack for a Free DFM Review
Don't let hidden engineering oversights lead to mass production defects or customer complaints[cite: 1]. Our engineering team audits your sketches to ensure structural stability and retail readiness[cite: 1].
We provide comprehensive technical reviews across all phases: Load Path Engineering | Edge Paint Protection | Internal Reinforcement Alignment | Production Quality Audits.
Submit Your Tech Pack for a Free DFM ReviewAbout the Author
Written by Timber Chan | Handbag Development & Supply Chain Specialist
Timber Chan oversees product engineering, pattern management, and factory quality control at Lettning Ang Handbag Factory (Guangzhou)[cite: 1]. With 16 years of hands-on technical experience on the production floor, he specializes in translating complex brand designs into scalable, structurally stable retail products[cite: 1].
By managing communication directly from the workshop, Timber helps global independent brands bridge the gap between creative design and disciplined manufacturing, ensuring predictable timelines and zero-compromise execution[cite: 1]. Connect via timber@lettningang.com or explore more factory insights on the Lettning platform[cite: 1].
